Aluminum Screen Ceiling System

Application areas:
Typically used in acoustically challenged spaces, in airports, rail terminals, semi-exposed soffit buildings, offices, retail, leisure centres, etc.

Vertical Screen Ceiling Systems can adjust the visual height of the house,and can hide all the pipes and other facilities at the bottom of the floor,and also ca makes the sunlight entering into the room or light soft and uniform.Suspended pieces ceiling is composed of aluminum alloy plate and keel,flxible in assembley and dis-assembly.There are 100mm of plug-in pieces,to be fixed onto the keel with 100mm,150mm spacing,the suspended pieces ceiling will not affect noise -absorbing of the house and the installation of facilities including fire-extinguishing sprinkler,air conditioning systems,etc.,a variety of colors is avaiable.

Details:
Metal Type: Aluminium or Galvanised Steel

Diameter:18mm,25mm
Colours: Ral 9010 White, Ral 9005 Black, Ral 9006 Metallic Gray, Wood-Look (Walnut, Bamboo) or customized
Spacing: 100mm, 150mm, customized

Merits:

Light, crates no load on the ceiling
Non problematic installation
Demountable,
Prevents the calorific loss
Acoustic performance (sound insulation)
Anti magnetic, sterile, can be wiped, washable
Concealment for (sanitary installation, ventilation system, electric installation etc)
Recycle

Project Case:

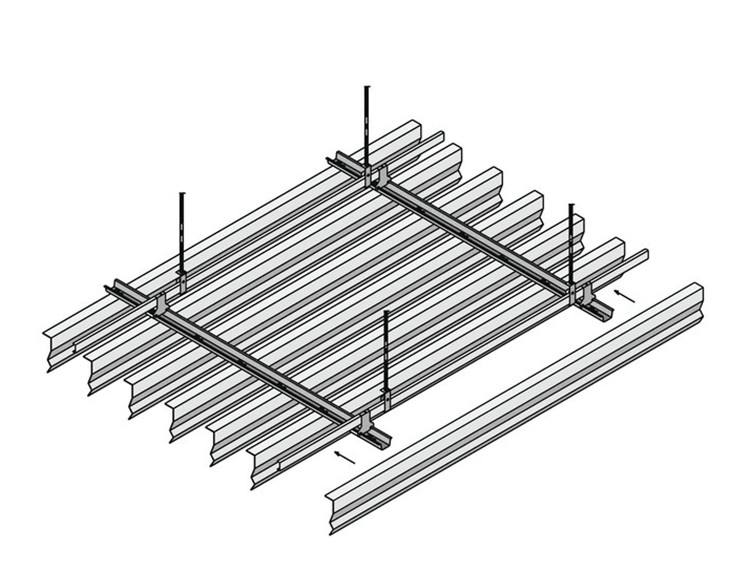

Scree Ceiling System Installation Sketch:

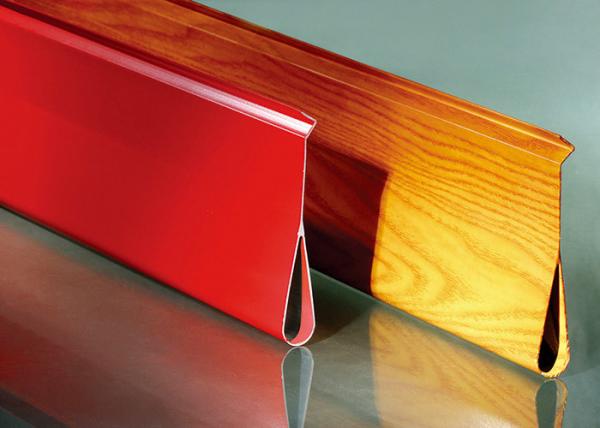

Woodgrain Color Chart:

Wuxi Genesis Technology established in 1992 is  a comprehensive manufacturing and trading company.We have bocome the leader in decoration material field with more than 27 years development.

We now become a classic industrial image and excellent repulation in metal aluminum ceiling industry,aluminum cladding panel,double curved and special-shaped panel.Wuxi Genesis Technology Co.,Ltd occupies an area 50666m2 with modern automation production workshops and office building.The present French SAMES automatic PVDF painting equipment and Korean KCI automatic power spraying equipment,computer data control punching and cutting arc welding skills are going to make our customers be satisfied with technic design and quality ceiling.

Many gifted engineering designers are employed in order to  provide the integration of designing,producing,installing services for our customers.The ISO9001:2001 Quality Management System lead us to control the quality of all products which make us have opportunity cooperation with the top world 500 enterprises for long time,such as HunterDouglas,Armstrong,and American Decoratiove Ceiling.

Our goal is the most advanced equipment,the perfect quality,and the best service,let us go together.
